0037P22 CONFIGURABLE EQUIPMENT FOR LIFTING CRANES

This is special equipment designed for lifting and handling of different heavy crane components.

The peculiarity is that it adapts to different connection points and is adjustable in length and width, with very fast and practical mechanical systems. Lifting by forklift is also provided.

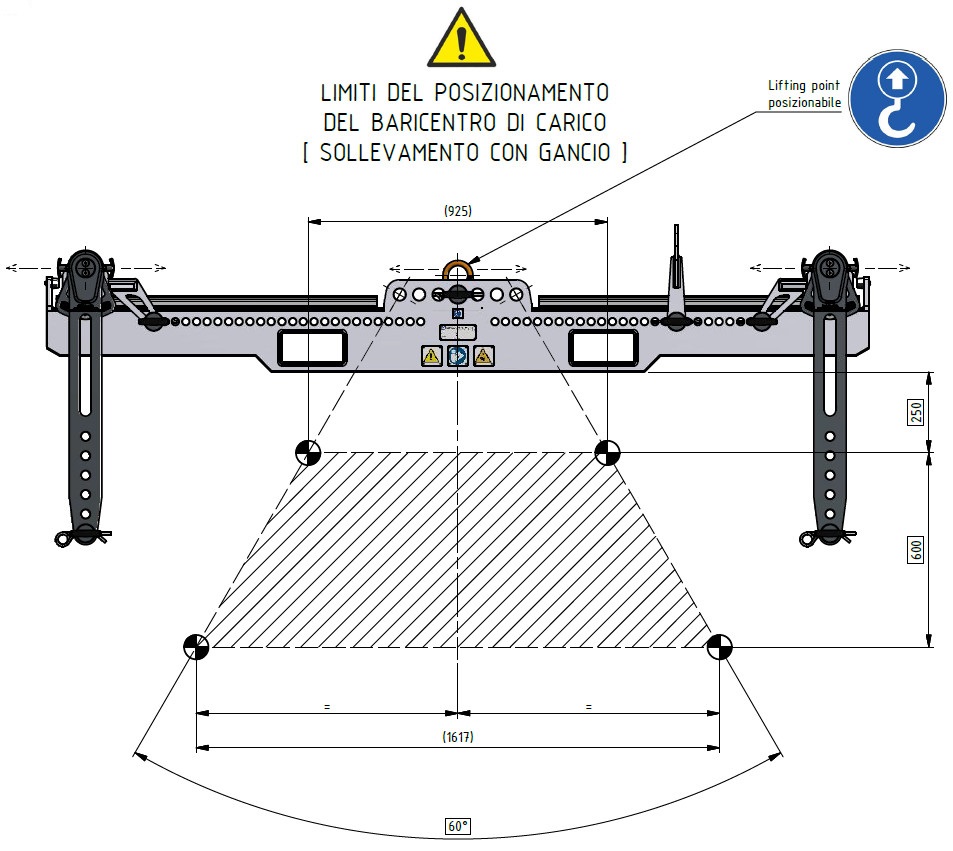

Particularly suitable for a barycentric lifting designed for assembly operations.

It is possible to lift the heavy components maintaining their desired inclination, within the allowed limits.

Max load	1,7 ton
Maximum longitudinal distance between connection points (length)	3120 mm
Minimum longitudinal distance between connection points (length)	650 mm
Maximum transverse distance between connection points (width)	340 mm
Minimum transverse distance between connection points (width)	500 mm

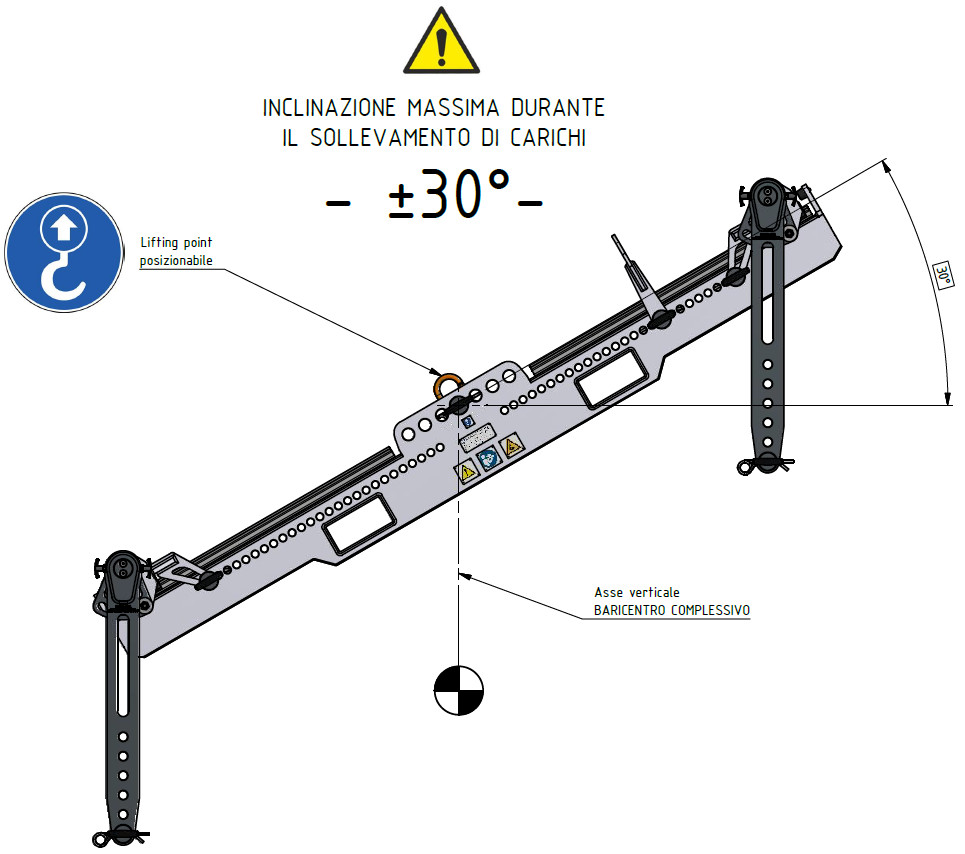

Maximum inclination allowed when lifting or handling the load	+/- 30°
