It is used for the automatic extraction of big quality burners from incinerators.

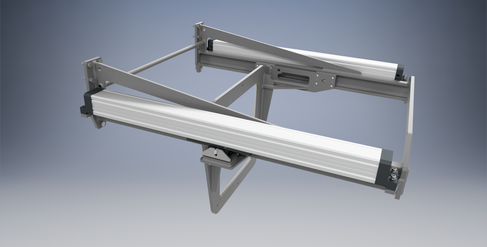

It is composed of a translator with sliding structure and a ventilated damper, both pneumatically actuated.
TECHICAL DATA
CAPACITY | 500 kg |
SLIDING TRANSLATION | 790 mm - 26 mm/sec |
OPENING DIAMETER | 500 mm |
PNEUMATIC SUPPLY | 6 bar - 10 lt/min |
MAX CLOSING LOAD | 3740 N |
MAX MOMENT AT THE SLIDING STRUCTURE | 350 kg/m |
MAX MOMENT AT THE CONNECTION | 880 kg/m |
EMPTY WEIGHT | 480 kg |
